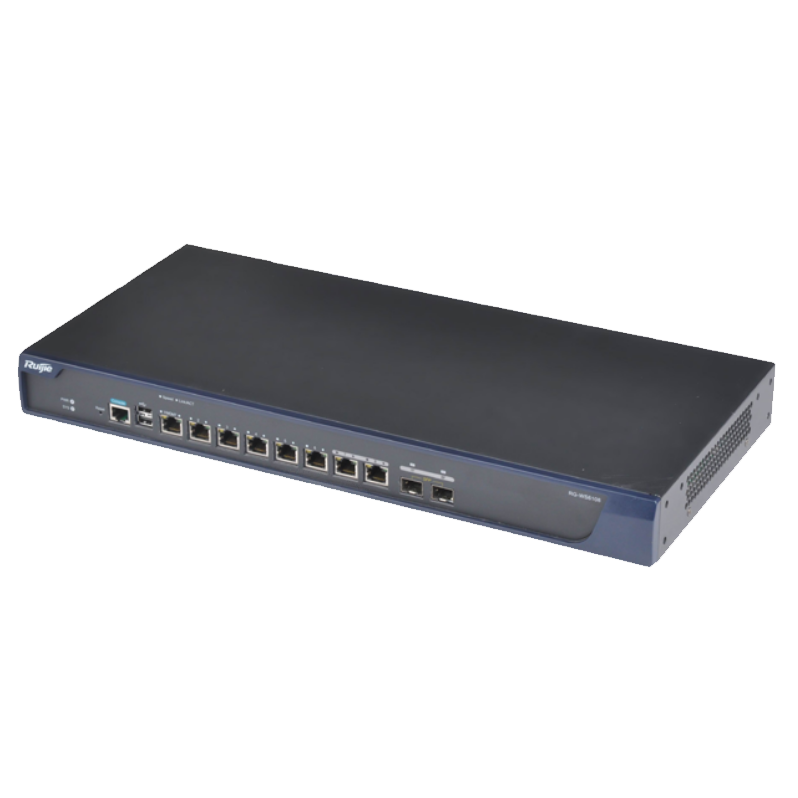

WLAN Controller for Large Enterprise (upto 640 AP)

Service Ports

8 1000BASE-T/1000BASE-X ports (combo)
4 1G/10GBASE-X SFP+ ports
2 expansion slots

6 1000BASE-T ports
2 1000BASE-T/1000BASE-X ports (combo)

6 1000BASE-T ports
2 1000BASE-T/1000BASE-X ports (combo)

2 1G/10GBASE-X SFP+ ports

Management Ports

1 console port
2 USB ports
1 10/100M MGMT port

1 console port
2 USB ports

1 console port
2 USB ports

1 console port
1 10/100/1000M MGMT port

LED Indicators

Performance

Switching Capacity

N/A

N/A

N/A

N/A

Packet Forwarding Rate

N/A

N/A

N/A

N/A

Default Number of Manageable APs

128

32

32

128

Maximum Number of Manageable APs

3,200 APs or 6,400 wall APs (with license upgrade)

320 APs or 640 wall APs (with license upgrade)

224 APs or 448 wall APs (with license upgrade)

2,560 APs or 6,400 wall APs (with license upgrade)

Maximum Number of Configurable APs

16K

2,048

2,048

16K

Maximum Number of Clients

80K

10K

6,400

80K

802.11 Performance

48Gbps

8Gbps

8Gbps

48Gbps

VLAN

Maximum Number of Clients Supported by the Built-in Portal

7,500

7,500

1,500

10K

ACL

512K

64K

64K

512K

Number of Wireless Users

80K

10K

6,400

80K

MAC Address Table

128K

16K

16K

128K

Local Authentication

300 wireless clients

300 wireless clients

300 wireless clients

10K wireless clients

ARP Table

96K

12K

12K

96K

IPv6 Neighbor Table

10K

10K

10K

10K

Inter-AC Roaming Switch Time

≤50ms

LAN

802.1Q VLAN

Support

QinQ

N/A

N/A

N/A

N/A

ACL

Standard IP ACL, Extended IP ACL, MAC-extended ACL, Expert ACL

Standard IP ACL, Extended IP ACL, MAC-extended ACL, Expert ACL

 Standard IP ACL, Extended IP ACL, MAC-extended ACL, Expert ACL

Standard IP ACL, Extended IP ACL, MAC-extended ACL, Expert ACL

QoS

N/A

N/A

N/A

N/A

WLAN

LAN Protocols

ARP, VLAN, 802.1p, 802.1q, 802.1d, 802.1w, 802.1s

802.11 LAN Protocols

802.11, 802.11b, 802.11a, 802.11g, 802.11d, 802.11h, 802.11w, 802.11k, 802.11r, 802.11i, 802.11e, 802.11n, 802.11ac, 802.11ax

Pre-AX

Support

Support

Support

Support

CorrectLink

Support

Support

Support

Support

AirReorder

Support

Support

Support

Support

CAPWAP

Layer 2/Layer 3 network topology between an AP and AC
Enable an AP to automatically discover an accessible AC
Enable an AP to automatically upgrade software version from an AC
Enable an AP to automatically download configurations from an AC
Network Address Translation (NAT) traversal

Roaming

Intra-AC roaming, Inter-AC roaming

Forwarding

Local forwarding, Centralized forwarding

Wireless QoS

AP-based bandwidth control, WLAN-based bandwidth control, User-based static and smart speed control, Fair balancing

User Isolation

AC-based user isolation
AP-based user isolation
WLAN-based user isolation

Reliability

Fast switching between 2 ACs, Multiple ACs redundancy (1:1 A/A and A/S, N:1), Multiple ACs clustering (N:N), Remote Intelligent Perception Technology (RIPT), Service upgrade

STA Management

AP-based STA access control, SSID-based STA access control, AP-based load balancing, AP traffic-based load balancing, 5G priority access, RSSI threshold

AP-based STA access control, SSID-based STA access control, AP-based load balancing, AP traffic-based load balancing, 5G priority access, RSSI threshold

AP-based STA access control, SSID-based STA access control, AP-based load balancing, AP traffic-based load balancing, 5G priority access, RSSI threshold

User-based bandwidth limit, User-based access control, Port mirroring

STA RSSI Threshold

0 to 100

STA Idle Timeout

60 to 86,400 seconds

60 to 86,400 seconds

60 to 86,400 seconds

90 to 86,400 seconds

STA Average Data Rate Threshold

8 to 819,200 with the accuracy of 8Kbps

Adjusting Transmit Power of Beacon and Probe Response

Support

Offline Syslog

Support

Security

IPv4/v6 Security

Web authentication, 802.1x authentication (EAP-PEAP, EAP-SIM, EAP-MD5, EAP-TLS, EAP-TTLS, PEAP-MSCHAPv2, EAP-FAST, EAP-AKA), MAC address authentication

PPSK

N/A

Support

Support

N/A

Virtual AP

Support

Support

Support

Support

Virtual AC

Support

Support

Support

Support

802.11 Security and Encryption

Multiple SSIDs, SSID hiding, 802.11i-compliant PSK authentication, WPA and WPA2, WEP (WEP/WEP128), WAPI, TKIP, CCMP, Protection against ARP spoofing

AAA

IEEE 802.1X

CPP

Support

NFPP

Support

WIDS/WIPS

Support

Internet Protocols

IPv4 Protocols

Ping, Traceroute, DHCP Server, DHCP Client, DHCP Relay, DHCP Snooping, DNS Client, NTP, Telnet, TFTP Client

IPv6 Protocols

DNSv6 Client, DHCPv6 Relay, DHCPv6 Server, TFTPv6 Client, FTPv6 Server, FTPv6 Client, IPv6 CAPWAP, ICMPv6, IPv6 Ping, IPv6 Traceroute, Manual tunnel, automatic tunnel
Manual configuration address, automatic local address

DNSv6 Client, DHCPv6 Relay, DHCPv6 Server, TFTPv6 Client, FTPv6 Server, FTPv6 Client, IPv6 CAPWAP, ICMPv6, IPv6 Ping, IPv6 Traceroute, Manual tunnel, automatic tunnel
Manual configuration address, automatic local address

DNSv6 Client, DHCPv6 Relay, DHCPv6 Server, TFTPv6 Client, FTPv6 Server, FTPv6 Client, IPv6 CAPWAP, ICMPv6, IPv6 Ping, IPv6 Traceroute, Manual tunnel, automatic tunnel
Manual configuration address, automatic local address

Dual stack IPv4/v6, Manual tunnel, ISATAP, 6to4 tunnel, IPv4 over IPv6 tunnel, DHCPv6, DNSv6, ICMPv6, ACLv6, TCP/UDP for IPv6, SOCKET for IPv6, SNMP v6, Ping/Traceroute v6, RADIUS, Telnet/SSH v6, FTP/TFTP v6, NTP v6, IPv6 MIB support for SNMP, VRRP for IPv6, IPv6 QoS, Static routing, OSPFV3

IPv4 Routing

Static routing, OSPF

Static routing, OSPF

Static routing, OSPF

Static routing, OSPF

IPv4 Routing Table Capacity

8K

8K

8K

8K

IPv4 Static Routing Table Capacity

1K

1K

1K

1K

IPv6 Routing

IPv6 Routing Table Capacity

1K

1K

1K

1K

IPv6 Static Routing Table Capacity

1K

1K

1K

1K

Management

Network Management

SNMP v1/v2c/v3, Web management, Syslog

Network Management Platform

Web management (Smart-web), RG-SNC management, Heat Map diagram

WIS Integration

Support

User Access Management

Login via console port
Login via Telnet
Login via SSH
Upload to FTP

Dimensions (W × D × H) (mm)

440 × 560 × 88.1

440 × 200 × 43.6

440 × 200 × 43.6

440 × 399 × 40.18

Rack Height

2RU

1RU

1RU

1RU

Weight

19kg

2kg

2kg

4.58kg

MTBF

Installation Mode

19-inch rack

19-inch rack

19-inch rack

Insert to RG-N18000 module slot

Power Supply

Support up to 2 power supply modules
(sold separately)

100VAC to 240VAC, 50Hz to 60Hz

Fixed power supply

100VAC to 240VAC, 50Hz to 60Hz

Fixed power supply

100VAC to 240VAC, 50Hz to 60Hz

Power supply from RG-N18000 chassis

Power Consumption

<100W

<40W

<40W

<190W

EMC Standard

GB9254-2008, CLASS A

GB9254, EN301 489

GB9254, EN301 489

GB9254-2008, CLASS A

Security Standard

GB4943-2011

GB4943, EN/IEC 60950-1

GB4943, EN/IEC 60950-1

GB4943-2011

Temperature

Operating Temperature: 0ºC to 45ºC

Storage Temperature: -40ºC to 70ºC

Humidity

Operating Humidity: 10% to 90%RH (non-condensing)

Storage Humidity: 5% to 95%RH (non-condensing)

Operating Altitude

0 to 3,000m

0 to 3,000m

0 to 3,000m

-500 to 5,000m
