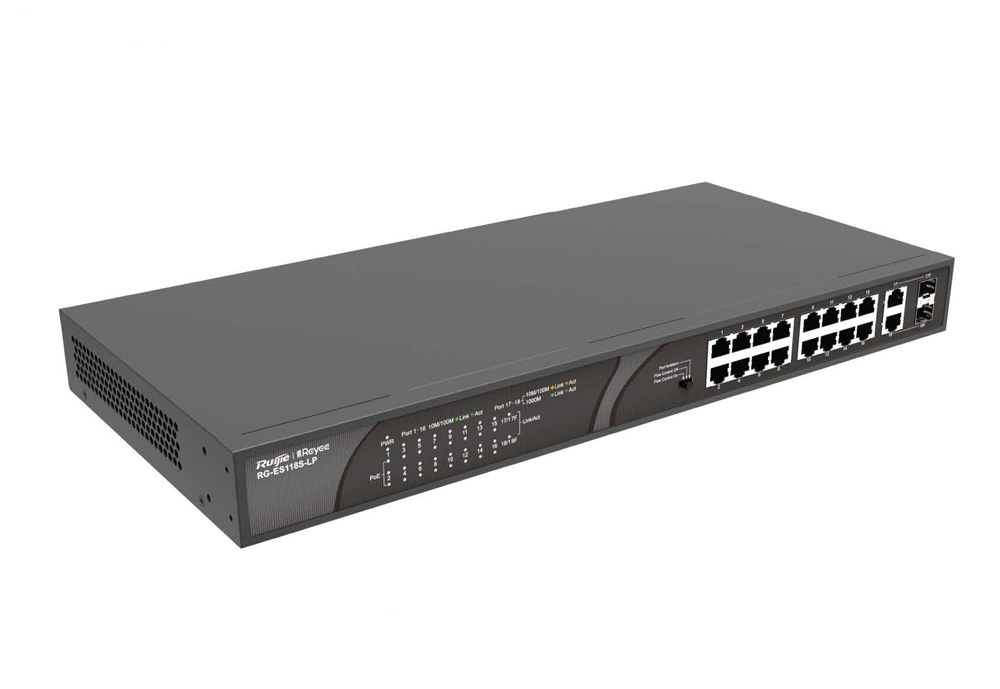

RG-ES118S-LP Unmanaged Switches

Model

RG-ES106D-P

RG-ES110D-P

RG-ES118S-LP

RG-ES126S-LP

Hardware specifications

Ports

4*10/100 Mbps PoE/PoE+ Ports

8*10/100 Mbps PoE/PoE+ Ports

16*10/100 Mbps PoE/PoE+ Ports

24*10/100 Mbps PoE/PoE+ Ports

2*10/100 Mbps uplink ports

2*10/100/1000 Mbps uplink ports

2*10/100/1000 Mbps combo ports

1*10/100/1000 Mbps uplink port
1*10/100/1000 Mbps combo port

Operating mode

Half-duplex, full-duplex, auto-negotiation mode
Support auto MDI/MDIX

Switching capacity

1.2Gbps

5.6Gbps

7.2Gbps

8.8Gbps

Package forwarding rate

0.89Mpps

4.17Mpps

5.36Mpps

6.55Mpps

Power supply

100-240V AC

Surge protection

Adapter:
Common mode: ±4 kV
Differential mode: ±2 kV
Network ports:
Non-PoE ports: ±4 kV
PoE ports: ±6 kV

Switch-mode power supply:
Common mode: ±6 kV
Differential mode: ±6 kV
Network ports:
Non-PoE ports: ±4 kV
PoE ports: ±6 kV

Port Mode

“Flow Control On”
 “Flow Control Off”
 “Port Isolation”
from left to right

Power consumption

67W

129W

148W

220W

PoE power budget

58W

110W

120W

180W

Fan

NA

NA

NA

Support

Dimensions

 (W x D x H)

100 x 100 x 26 mm

190 x 100 x 28 mm

440 x 208 x 44 mm

440 x 180 x 44 mm

Operating temperature

0℃ to 45℃

Storage temperature

-40℃ to 70℃

Operating humidity

10% to 90% RH

Storage humidity

5% to 95% RH
