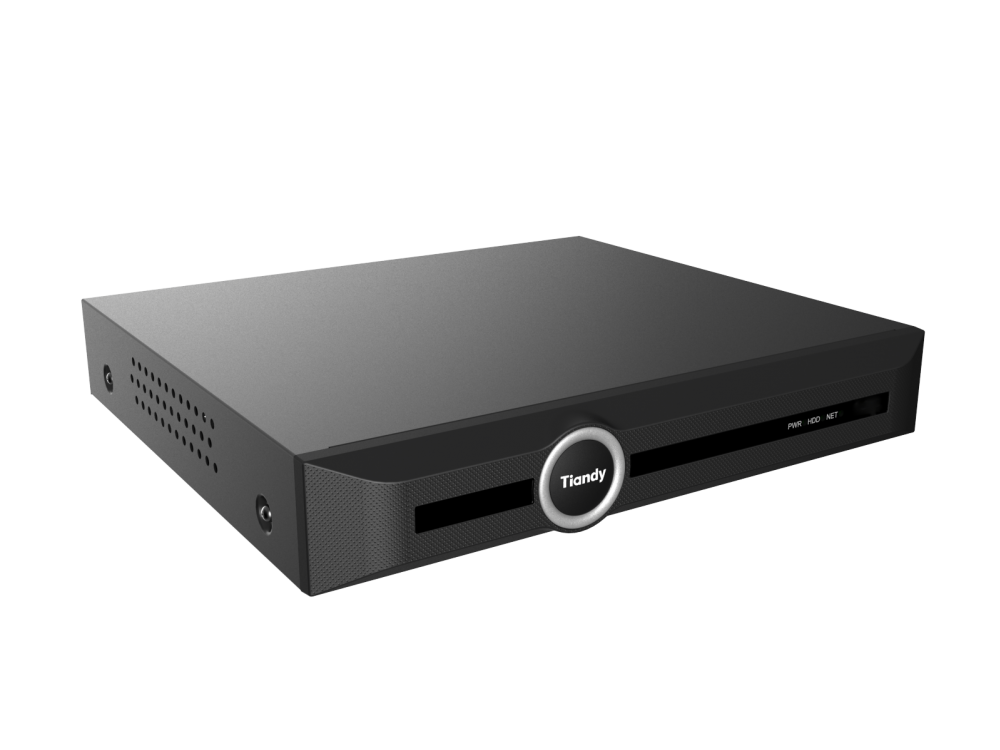

H.265 1 HDD 10ch NVR
• Up to 6MP resolution
• 1×HDMI/1VGA simultaneous outputs
• Up to 4K resolution
• Up to 10TB for 1 HDD
KEY FEATURES
HD Input
• S+265/H.265/H.264 video formats
• Connectable to the third-party network cameras
• Support live view, storage, and playback of the connected camera at up to 6MP resolution
HD Output
• 1×HDMI and 1×VGA simultaneous outputs
• HDMI Video output at up to 4K resolution
HD Storage
• 1 SATA interface, up to 10TB for 1 HDD
• S+265 compression effffectively reduces the storage space and costs by up to 75%
HD Transmission
• 1×RJ45 self-adaptive 10/100 Mbps network interface
Various Applications
• Centralized management of IP cameras, including confifiguration, information import/export, real-time information display, upgrade, etc.
• Connectable to smart IP cameras from Tiandy and the recording, playing back, and backing up of VCA alarms can be realized
• VCA detection alarm is supported
• Web6 supports plug-in free browsing and can preview videos on all browsers
• Support cloud upgrade
|
Input |
|
|
Video Input |
10-ch |
|
Max Resolution |
6MP |
|
Two-way Audio Input |
N/A |
|
Bandwidth |
Income 60Mbps; Outgoing 40Mbps |
|
Output |
|
|
HDMI/VGA Output |
HDMI 1-ch, 3840x2160, 1920×1080, 1280×720, 1024×768, 1366×768, 1440×900, 1280×800 |
|
VGA 1-ch, 1920×1080, 1280×720, 1024×768, 1366×768, 1440×900, 1280×800 |
|
|
Screen Split |
1/3/4/5/6/7/8/9/10 |
|
Audio Output |
1×RCA |
|
Decoding |
|
|
Decoding Format |
S+265/H.265/H.264 |
|
Recording Resolution |
6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
|
Preview Capability |
1×6MP, 1×5MP, 1×4MP, 1×3MP, 4×1080P, 10×720P, 10×4CIF |
|
Synchronous Playback |
1×6MP, 1×5MP, 1×4MP, 1×3MP, 3×1080P, 4×720P |
|
Records Encryption |
N/A |
|
Hard Disk |
|
|
SATA |
1 SATA interface for 1 HDDs |
|
Capacity |
Up to 10TB for each HDD |
|
eSATA Interface |
N/A |
|
Array Type |
N/A |
|
External Interface |
|
|
Network Interface |
1×RJ45 self-adaptive 10/100 Mbps network interface |
|
USB Interface |
2×USB 2.0 |
|
Serial Interface |
N/A |
|
Alarm In/Out |
N/A |
|
Network |
|
|
Protocol |
HTTP, HTTPS, TCP/IP, UDP, UPnP, ICMP, IGMP, DHCP, DNS, DDNS, EasyDDNS, NTP, SMTP, SSL, QoS, IPv4, IPv6, IP Filter, Telnet, SSH, RTSP, RTP, RTCP, ARP |
|
System Compatibility |
ONVIF (PROFILE S/T), SDK, P2P |
|
General |
|
|
Web Version |
Web6 |
|
Language |
Simplified Chinese, Traditional Chinese, English, Spanish, Italian, Korean, Turkish, Russian, Thai, French, Hebrew, Polish, Dutch, Arabic, Vietnamese, German, Ukrainian |
|
Operating Conditions |
-10～55℃, 10%~90% RH |
|
Power Supply |
DC12V 3.3A |
|
Consumption |
≤10W |
|
Chassis |
1U |
|
Dimensions |
44×255×231mm, (1.78×10.04×9.09 inch) |
|
Weight (without HDD) |
0.8Kg (1.76lb) |
