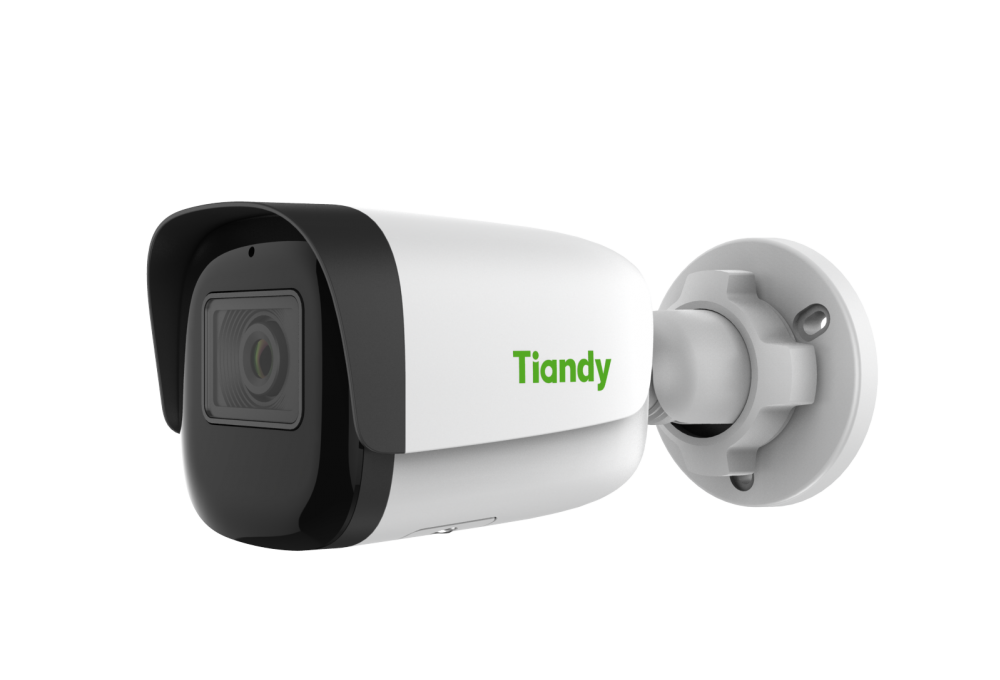

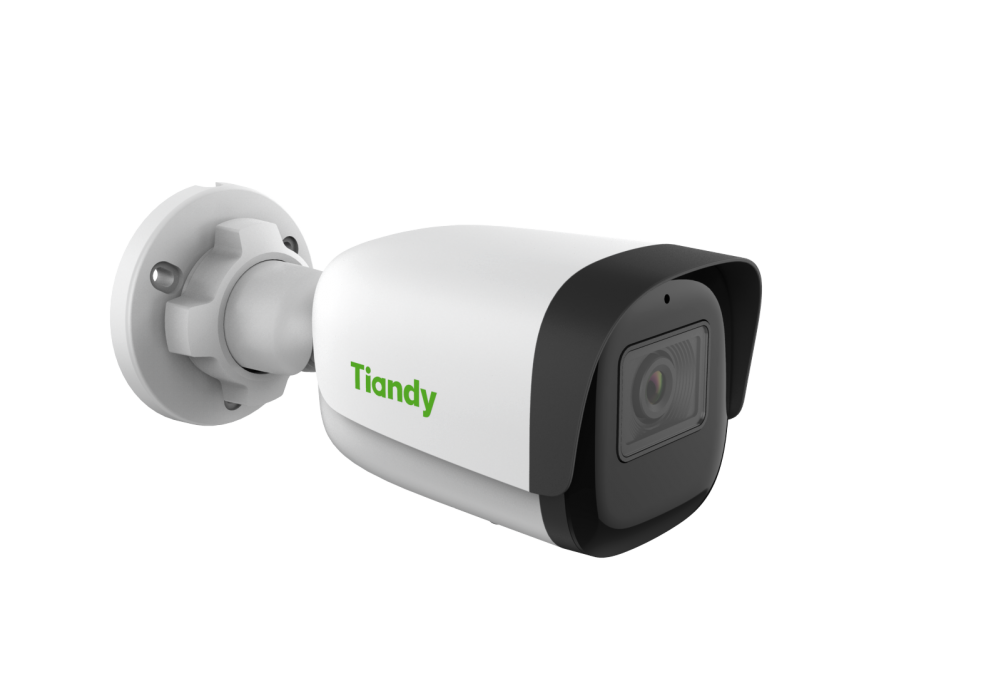

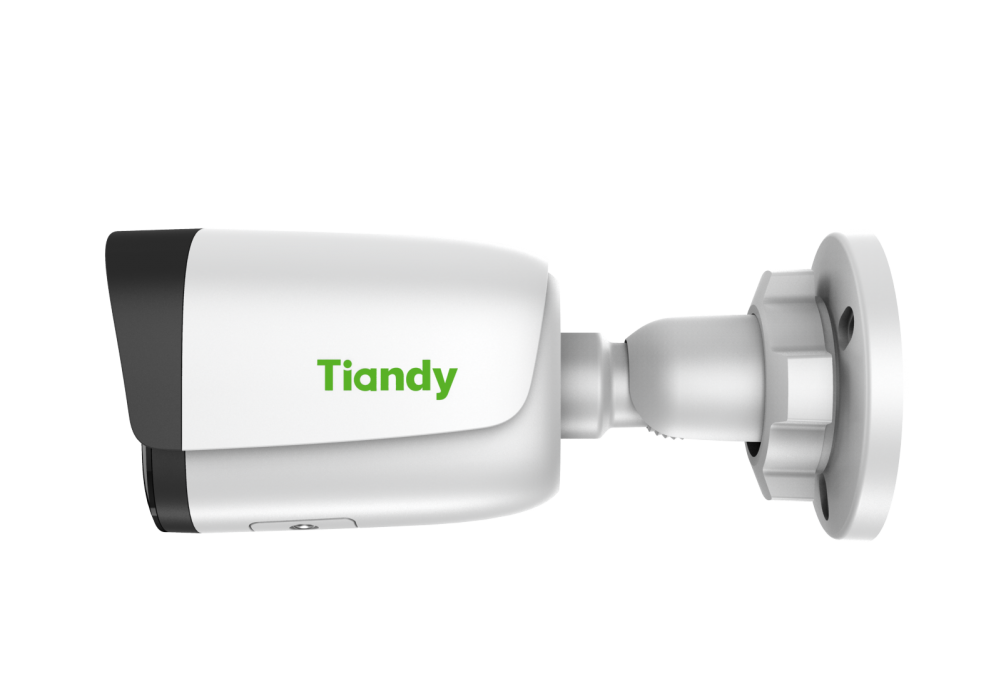

2MP Fixed IR Bullet Camera

Image Sensor

1/2.8" CMOS

Signal System

PAL/NTSC

Min. Illumination

Color: 0.02Lux@ (F2.0, AGC ON), B/W: 0Lux with IR

Shutter Time

1s to 1/100,000s

Day & Night

Dual IR Cut Filter with Auto Switch

Wide Dynamic Range

Digital WDR

Angle Adjustment

Bracket, pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

Lens

Lens Type

Fixed

Focus

2.8mm/4mm

Lens Mount

M12

Aperture

F2.0, Fixed

FOV

Horizontal field of view: 99.7° (2.8mm)/28.3° (4mm）

Illuminator

IR LEDs

2

IR Range

Up to 50 m

Wavelength

850nm

White LEDs/Warmlights

N/A

Compression Standard

Video Compression

S+265/H.265/H.264

Video Bit Rate

32 Kbps~6 Mbps

Audio Compression

G.711/G.711U/ADPCM

Audio Bit Rate

8K~48Kbps


Max. Resolution

1920×1080

Main Stream

PAL: 25fps (1920×1080, 1280×720, 704×576, 640×480)

NTSC: 30fps (1920×1080,1280×720, 704×480, 640×480)

Sub Stream

PAL: 25fps (704×576, 704×288, 640×360, 352×288)

NTSC: 30fps (704×480, 704×240, 640×360, 352×240)

Third Stream

N/A

Image Setting

Saturation, brightness, contrast, sharpness, adjustable by client software or web browser

Image Enhancement

BLC/3D DNR/HLC

ROI

N/A

OSD

16×16, 32×32, 48×48, adaptable size, Letters Such as Week, Date, Time, Total 3 Regions

Picture Overlay

N/A

Privacy Mask

Yes, 4 regions

Smart Defog

Yes

Feature

Alarm Trigger

Motion Detection, Mask Alarm, IP Address Conflict

Video Analytics

Tripwire, Perimeter

Early Warning(EW)

N/A

Network

ANR

Yes(Only Support Tiandy ANR NVR)
